Hp Showroom in Hyderabad - Hp Raid Controller

HP H240ar Smart Host Bus Adapter
  • Model Number: 726757 B21
  • Form factor: Flexible smart host bus controller
  • Performance:
  • 12 Gb/s SAS (Bandwidth per physical link)
  • 96 Gb/s total available bandwidth (8 physical links x 12 Gb/s)
  • Features:
  • SAS Technology delivers high performance and data bandwidth up to 12 Gb/s per physical link
  • Mix and Match SAS and SATA hard drives; Deploy drive technology as needed
  • PCIe 3.0 x8 (8 GB/s bandwidth)
  • Ports: Eight (8) SAS physical links distributed across 2 x4 internal SFF8087 Mini SAS connectors
  • Capacity:
  • Eight 12 Gb/s SAS physical links supporting up to 2 simultaneous x4 SAS Ports
  • Capacity up to 144TB
  • Warranty: 1 year Warranty
HP Smart Array P440 4G Controller
  • Model Number: 726821 B21
  • Standard Features:
  • Storage interface (SAS/SATA):
  • 8 physical links across 1 x8 internal port
  • 12Gb/s SAS, 6Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
  • 4 GiBytes Flash Backed Write Cache (FBWC)
  • PCI Express Gen3 x8 link
  • RAID 0, 1, 10, 5, 50, 6, 60, 10 ADM (Advanced Data Mirroring)
  • RAID or HBA mode
  • Legacy and UEFI boot operation
  • Up to 200 physical drives
  • Up to 64 logical drives
  • HPE SmartCache (optional license)
  • HPE Secure Encryption (optional license)
  • HPE SSD Smart Path
  • VMware Virtual SAN certified
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive Erase
  • Performance Optimization Degraded Reads and Read Coalescing
  • Power Efficiency
  • Seamless upgrades to and from other HPE Smart Array controllers
  • Recovery ROM to protect against controller ROM corruption
  • Low profile standard PCI Express plug in card
  • Ships with a full size and a low profile bracket
  • Dimensions (excluding bracket): 6.6 in x 2.7 in x 0.57 in (16.8 cm x 6.86 cm x 1.6 cm)
  • Ports:
  • Internal: 8 SAS/SATA physical links across 1 x8 port
  • Performance:
  • 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
  • 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
  • PCI Express Gen3 x8 link width
  • 4 GiBytes 72 bit wide DDR3 1866 Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth
  • Read ahead caching
  • Write back caching
  • Warranty: The warranty for this device is 3 years parts only
HP Smart Array P441 4G Controller
  • Model Number: 726825 B21
  • Standard Features :
  • Storage interface (SAS/SATA):
  • 8 physical links across 2 x4 external ports
  • 12Gb/s SAS, 6Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
  • 4 GiBytes Flash Backed Write Cache (FBWC)
  • PCI Express Gen3 x8 link
  • RAID 0, 1, 10, 5, 50, 6, 60, 10 ADM (Advanced Data Mirroring)
  • RAID or HBA mode
  • Legacy and UEFI boot operation
  • Up to 200 physical drives
  • Up to 64 logical drives
  • Up to 8 daisy chained HPE D3600 Disk Enclosure and HPE D3700 Disk Enclosure in dual domain configuration
  • HPE SmartCache (optional license)
  • HPE Secure Encryption (optional license)
  • HPE SSD Smart Path
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive Erase
  • Performance Optimization Degraded Reads and Read Coalescing
  • Power Efficiency
  • Seamless upgrades to and from other HPE Smart Array controllers
  • Recovery ROM to protect against controller ROM corruption
  • Low profile standard PCI Express plug in card
  • Dimension (excluding bracket): 7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)
  • Ports
  • External: 8 SAS/SATA physical links across 2 x4 port
  • Performance
  • 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
  • 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
  • PCI Express Gen3 x8 link width
  • 4 GiBytes 72 bit wide DDR3 1866 Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth
  • Read ahead caching
  • Write back caching
  • Warranty: The warranty for this device is 3 years parts only

HP Smart Array P840 4G Controller
  • Model Number: 726897 B21
  • Product features:
  • Supports up to 16 drives without need for expander card
  • Seamless upgrades to and from other HP Smart Array controllers
  • Recovery Read-Only Memory (ROM) protects against ROM corruption
  • Capable of supporting both legacy and Unified Extensible Firmware Interface (UEFI) boot operation on Gen9 servers
  • 4GB Transportable Flash-backed write cache (Not all of which is available for user data)
  • PCIe 3.0 8 x Host interface provides up to 8 GiB/s in each direction
  • 12 Gb/s SAS Performance when used on Gen9 servers with 12 Gb/s devices (Hard Disk Drive (HDD) or Solid State Drive (SSD))
  • 12 Gb/s SAS Technology delivers up to 1200 MB/s per physical link
  • 6 Gb/s SATA Technology delivers up to 600 MB/s for directly attached SATA drives
  • Mix And Match SAS and SATA drives
  • HP SSD Smart Path feature included in the Smart Array software stack
  • HP SmartCache feature included with P840 controller
  • HP Secure Encryption, available as an option, is a Smart Array controller-based data encryption solution for ProLiant Gen9 servers
  • Performance:
  • 12 Gb/s SAS (1200 MB/s Theoretical bandwidth per physical lane)
  • 4 GiBytes 72 bit wide DDR3 1866 FBWC provides up to 14.9 GB/s maximum cache bandwidth
  • PCI Express Gen3 x 8 link width
  • Read ahead caching
  • Write Back caching
  • Ports: 16 SAS/SATA Physical links distributed across 2 double wide Mini SAS 8i connectors
  • Warranty: 1 year Warranty

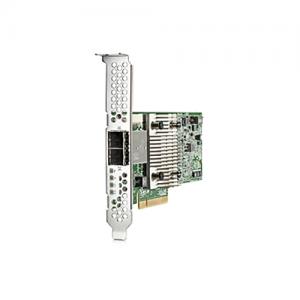

HPE H241 Smart Host Bus Adapter
  • Model Number: 726911 B21
  • Performance:
  • 12Gb/s SAS (bandwidth per physical link)
  • 96Gb/s total available bandwidth (8 physical links x 12Gb/s)
  • PCIe 3.0 host interface x8 (8GT/s bandwidth per lane)
  • Features:
  • SAS technology delivers high performance and data bandwidth up to 12Gb/s per physical link
  • Mix and match SAS and SATA hard drives; deploy drive technology as needed
  • PCIe 3.0 x8 ( 8GB/s bandwidth)
  • Ports: Eight (8) SAS physical links distributed across 2 x4 external SFF-8644 Mini-SAS HD connectors
  • Capacity
  • Eight 12Gb/s SAS physical links supporting up to 2 simultaneous x4 Wide SAS Ports
  • Capacity up to 576TB of SAS or 576TB SATA
  • Form factor: Either high profile or low-profile PCIe 3.0 slots (parts included with option)
  • Warranty: 1 year Warranty
HP Smart Array P440 2G Controller
  • Model Number: 820834 B21
  • Standard Features :
  • Storage interface (SAS/SATA):
  • 8 physical links across 1 x8 internal port
  • 12Gb/s SAS, 6Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
  • 4 GiBytes Flash Backed Write Cache (FBWC)
  • PCI Express Gen3 x8 link
  • RAID 0, 1, 10, 5, 50, 6, 60, 10 ADM (Advanced Data Mirroring)
  • RAID or HBA mode
  • Legacy and UEFI boot operation
  • Up to 200 physical drives
  • Up to 64 logical drives
  • HPE SmartCache (optional license)
  • HPE Secure Encryption (optional license)
  • HPE SSD Smart Path
  • VMware Virtual SAN certified
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive Erase
  • Performance Optimization-Degraded Reads and Read Coalescing
  • Power Efficiency
  • Seamless upgrades to and from other HPE Smart Array controllers
  • Recovery ROM to protect against controller ROM corruption
  • Low-profile standard PCI Express plug in card
  • Ships with a full size and a low profile bracket
  • Dimensions (excluding bracket): 6.6 in x 2.7 in x 0.57 in (16.8 cm x 6.86 cm x 1.6 cm)
  • Ports
  • Internal: 8 SAS/SATA physical links across 1 x8 port
  • Performance
  • 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
  • 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
  • PCI Express Gen3 x8 link width
  • 4 GiBytes 72 bit wide DDR3-1866 Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth
  • Read ahead caching
  • Write back caching
  • Warranty: The warranty for this device is 3 years parts only
HPE Smart Array P408e p SR Gen10 Controller
  • Model Number: 804405 B21
  • Features:
  • Storage interface (SAS/SATA)
  • 8 SAS lanes across 2 x4 external Mini-SAS HD ports
  • 12 Gb/s SAS, 6 Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
  • 4GB FBWC
  • PCI express 3.0 x8 link
  • RAID 0, 1, 5, 6, 10, 50, 60, 1 Advanced data mirroring (ADM), 10 ADM
  • Mixed mode (RAID logic drives and HBA physical drives simultaneously)
  • Legacy and UEFI boot operation
  • UEFI system utilities (Storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • HPE Smart array SR SmartCache (Optional license)
  • HPE Smart array SR secure encryption (Optional license)
  • HPE SSD smart path
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Rapid rebuild
  • Performance optimization degraded reads and read coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart array S class and E class controllers
  • FIPS 140 2 level 1 implementation under test (Expected validation complete in 2018)
  • Ports
  • External: 8 SAS/SATA lanes across 2 x4 mini SAS HD ports
  • Form factor
  • PCIe Plug In controller (Does not occupy a PCIe expansion slot)
  • Performance
  • 12 Gb/s SAS (1200 Mb/s theoretical bandwidth per SAS lane)
  • 6 Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
  • PCI express 3.0 x8 link width
  • 4GB 72 bit wide DDR4-2100 FBWC provides up to 16.8 GB/s maximum cache bandwidth
  • Read ahead caching
  • Write Back caching
  • Warranty: 1 year Warranty
HPE Smart Array P408i p SR Gen10 Controller
  • Model Number: 830824 B21
  • Features:
  • Storage interface (SAS/SATA)
  • 8 SAS lanes across 2 x 4 internal Mini SAS ports
  • 12 Gb/s SAS, 6 Gb/s SATA technology
  • Mix-and-Match SAS and SATA drives to the same controller
  • Support for SAS tape drives
  • 2GB FBWC
  • PCI express 3.0 x 8 link
  • RAID 0, 1, 5, 6, 10, 50, 60, 1 Advanced Data Mirroring (ADM), 10 ADM
  • Mixed mode (RAID logic drives and HBA physical drives simultaneously)
  • Legacy and UEFI boot operation
  • UEFI system utilities (Storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • HPE Smart Array SR SmartCache (Optional license)
  • HPE Smart Array SR secure encryption (Optional license)
  • HPE Solid State Disk (SSD) smart path
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive sanitize
  • Performance Optimization Degraded reads and read coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart Array S class and E class controllers
  • FIPS 140 2 level 1 implementation under test (Expected validation complete in 2018)
  • Ports
  • Internal: 8 SAS/SATA lanes across 2 x 4 Mini-SAS ports
  • Form factor
  • PCIe Plug In controller (Occupies a PCIe expansion slot)
  • Performance
  • 12 Gb/s SAS (1200 MB/s theoretical bandwidth per SAS lane)
  • 6 Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
  • PCI express 3.0 x 8 link width
  • 2GB 72 bit wide DDR4 2100 FBWC provides up to 16.8 GB/s maximum cache bandwidth
  • Read ahead caching
  • Write Back caching
  • Warranty: 1 year Warranty
HPE Smart Array E208e p SR Gen10 Controller
  • Model Number: 804398 B21
  • Standard Features :
  • Storage interface (SAS/SATA):
  • 8 SAS lanes across 2 x4 external MiniSAS HD ports
  • 12Gb/s SAS, 6Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives
  • PCI Express 3.0 x8 link
  • RAID 0, 1, 5, 10
  • Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
  • Legacy and UEFI boot operation
  • UEFI System Utilities (storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • Supports up to 8 daisy chained HPE D3610 Disk Enclosure and HPE D3710 Disk Enclosure in dual
  • domain configuration
  • HPE Smart Array SR Secure Encryption (optional license)
  • HPE SSD Smart Path
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive Sanitize
  • Performance Optimization-Degraded Reads and Read Coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart Array Software RAID
  • Seamless upgrades to HPE Smart Array P-class Controllers
  • Ports
  • External: 8 SAS/SATA lanes across 2 x4 external Mini SAS HD ports
  • Form Factor: PCIe Plug in Controller (occupies a PCIe expansion slot)
  • Performance:
  • 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
  • 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
  • PCI Express 3.0 x8 link width
  • Warranty: The warranty for this device is 3 years parts only

HPE Smart Array E208i a SR G10 LH Controller
  • Model Number: 869079 B21
  • Storage interface (SAS/SATA)
  • 8 SAS lanes across 2 x 4 internal mini SAS ports
  • 12 Gb/s SAS, 6 Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives
  • PCI Express 3.0 x 8 link
  • RAID 0, 1, 5, 10
  • Mixed mode (RAID logic drives and HBA physical drives simultaneously)
  • Legacy and UEFI boot operation
  • UEFI System utilities (Storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • HPE Smart Array SR secure encryption (Optional license)
  • HPE Solid State Disk (SSD) smart path
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive sanitize
  • Performance optimization Degraded reads and read coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart Array Software RAID
  • Seamless upgrades to HPE Smart Array P class controllers
  • Ports (Internal): 8 SAS/SATA lanes across 2 x 4 internal mini SAS ports
  • Form factor: Type a Flexible/Modular controller (Does not occupy a PCIe Expansion slot)
  • Performance
  • 12 Gb/s SAS (1200 Mb/s Theoretical bandwidth per physical lane)
  • 6 Gb/s SATA (600 Mb/s Theoretical bandwidth per physical lane)
  • PCI Express 3.0 x 8 link width
  • Warranty: 1 year Warranty

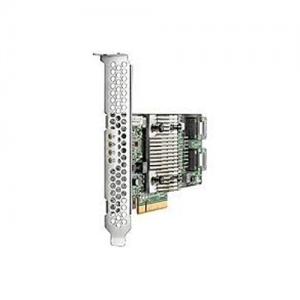

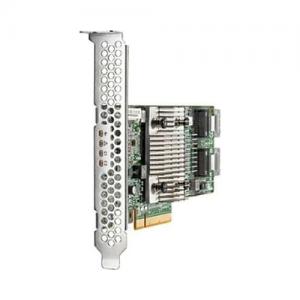

HPE H240 Smart Host Bus Adapter
  • Model Number: 726907 B21
  • Performance:
  • 12 Gb/s SAS (bandwidth per physical link)
  • 96 Gb/s total available bandwidth (8 physical links x 12 Gb/s)
  • Features:
  • SAS technology delivers high performance and data bandwidth up to 12 Gb/s per physical link
  • Mix and match SAS and SATA hard drives; deploy drive technology as needed
  • PCIe 3.0 x8 ( 8GB/s bandwidth)
  • RAID 0, 1, 5, 10 or HBA mode
  • Ports: Eight (8) SAS physical links distributed across 2 x4 internal Mini-SAS connectors
  • Capacity
  • Eight 12 Gb/s SAS physical links supporting up to 2 simultaneous x4 SAS Ports
  • Capacity up to 144TB of SAS or 144TB SATA
  • Form factor: Either high profile or low-profile PCIe 3.0 slots (parts included with option)
  • Warranty: 1 year Warranty

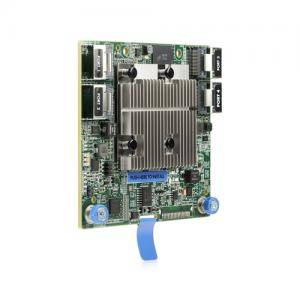

HPE Smart Array P816i a SR Gen10 Controller
  • Model Number: 804338 B21
  • Features:
  • Storage interface (SAS/SATA)
  • 16 SAS lanes across 4 x4 internal mini SAS ports
  • 12 Gb/s SAS, 6 Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives
  • 4GB FBWC
  • PCI express 3.0 x8 link
  • RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 Advanced Data Mirroring (ADM)
  • Mixed mode (RAID logic drives and HBA physical drives simultaneously)
  • Legacy and UEFI boot operation
  • UEFI system utilities (Storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • HPE Smart Array SR SmartCache (License included)
  • HPE Smart Array SR secure encryption (Optional license)
  • HPE SSD smart path
  • HPE SSD smart path
  • Rapid rebuild
  • Drive sanitize
  • Performance optimization - Degraded reads and read coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart Array S-class and E-class controllers
  • FIPS 140-2 Level 1 implementation under test (Expected validation complete in 2018)
  • Ports
  • Internal: 16 SAS/SATA lanes across 4 x4 mini SAS ports
  • Form factor: Type a Flexible/Modular controller (Does not occupy a PCIe expansion slot)
  • Performance
  • 12 Gb/s SAS (1200 Mb/s theoretical bandwidth per SAS lane)
  • 6 Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
  • PCI express 3.0 x8 link width
  • 4GB 72-bit wide DDR4-2100 flash-backed write cache provides up to 16.8 Gb/s maximum cache bandwidth
  • Read ahead caching
  • Write back caching
  • Warranty: 1 year Warranty
HPE Smart Array E208i p SR Gen10 Controller
  • Model Number: 804394 B21
  • Features:
  • Storage interface (SAS/SATA)
  • 8 SAS lanes across 2 x4 internal mini SAS ports
  • 12 Gb/s SAS, 6 Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives
  • PCI express 3.0 x8 link
  • RAID 0, 1, 5, 10
  • Mixed mode (RAID logic drives and HBA physical drives simultaneously)
  • Legacy and UEFI boot operation
  • UEFI system utilities (Storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • HPE Smart Array SR secure encryption (Optional license)
  • HPE Solid State Disk (SSD) smart path
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive sanitize
  • Performance optimization-degraded reads and read coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart Array software RAID
  • Seamless upgrades to HPE Smart Array P-class controllers
  • Ports
  • Internal: 8 SAS/SATA lanes across 2 x4 internal mini SAS ports
  • Performance
  • 12 Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
  • 6 Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
  • PCI express 3.0 x8 link width
  • Warranty: 1 year Warranty

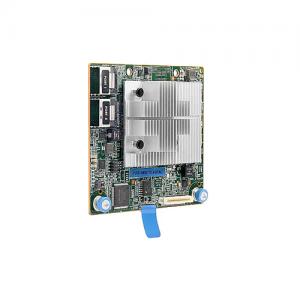

HPE Smart Array E208i a SR Gen10 Controller
  • Model Number: 804326 B21
  • Standard Features
  • Storage interface (SAS/SATA)
  • 8 SAS lanes across 2 x4 internal Mini SAS ports
  • 12Gb/s SAS, 6Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives
  • PCI Express 3.0 x8 link
  • RAID 0, 1, 5, 10
  • Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
  • Windows Storage Spaces Direct validated
  • VMware Virtual SAN certified
  • Legacy and UEFI boot operation
  • UEFI System Utilities (storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • HPE Smart Array SR Secure Encryption (optional license)
  • HPE SSD Smart Path
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive Sanitize
  • Performance Optimization-Degraded Reads and Read Coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart Array Software RAID
  • Seamless upgrades to HPE Smart Array P-class Controllers
  • Ports
  • Internal: 8 SAS/SATA lanes across 2 x4 internal Mini SAS ports
  • Form Factor
  • Type a Flexible/Modular Controller (does not occupy a PCIe Expansion Slot)
  • Performance 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
  • 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
  • PCI Express 3.0 x8 link width
  • Warranty: The warranty for this device is 3 years parts only
HPE Smart Array P816i a SR G10 LH Controller
  • Model Number: 869083 B21
  • Storage interface (SAS/SATA)
  • 16 SAS lanes across 4 x4 internal mini-SAS ports
  • 12 Gb/s SAS, 6 Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives
  • 4GB FBWC
  • PCI express 3.0 x8 link
  • RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 Advanced Data Mirroring (ADM)
  • Mixed mode (RAID logic drives and HBA physical drives simultaneously)
  • Legacy and UEFI boot operation
  • UEFI system utilities (Storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • HPE Smart Array SR SmartCache (License included)
  • HPE Smart Array SR secure encryption (Optional license)
  • HPE SSD smart path
  • HPE SSD smart path
  • Rapid rebuild
  • Drive sanitize
  • Performance optimization - Degraded reads and read coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart Array S-class and E-class controllers
  • FIPS 140-2 Level 1 implementation under test (Expected validation complete in 2018)
  • Ports
  • Internal: 16 SAS/SATA lanes across 4 x4 mini-SAS ports
  • Form factor: Type a Flexible/Modular controller (Does not occupy a PCIe expansion slot)
  • Performance
  • 12 Gb/s SAS (1200 Mb/s theoretical bandwidth per SAS lane)
  • 6 Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
  • PCI express 3.0 x8 link width
  • 4GB 72 bit wide DDR4-2100 flash-backed write cache provides up to 16.8 Gb/s maximum cache bandwidth
  • Read ahead caching
  • Write back caching
  • Warranty: 1 year Warranty
HPE Smart Array P408i a SR Gen10 12G SAS Modular LH Controller
  • Model Number: 869081 B21
  • Form factor: Type a modular controller
  • Ports: Internal: 8 SAS lanes across 2 x4 Mini SAS ports
  • Cache: 2 GB Flash Backed Write Cache
  • Transfer rate:
  • 12Gb/s SAS per lane
  • 6Gb/s SATA per lane
  • PCI Express 3.0 x8 lane width
  • SATA speed: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
  • Warranty: The warranty for this device is 3 years parts only

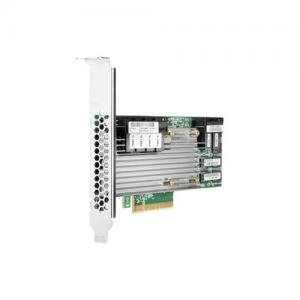

HPE Smart Array P824i p MR Gen10 12G SAS PCIe Controller
  • Model Number: 870658 B21
  • Form factor: PCIe Plug in Controller
  • Ports: Internal: 24 SAS lanes across six x4 mini-SAS HD ports
  • Cache: 4 GB Flash Backed Write Cache
  • RAID levels; 0, 1, 5, 6, 10, 50, 60
  • Minimum dimensions ( H x W x D): 19.05 x 24.13 x 5.71 cm
  • Weight: 0.34 kg
  • Warranty: The warranty for this device is 3 years parts only

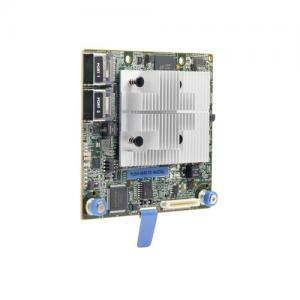

HPE Smart Array P408i a SR Gen10 Controller
  • Model Number: 804331 B21
  • Standard Features
  • Storage interface (SAS/SATA)
  • 8 SAS lanes across 2 x4 internal Mini SAS ports
  • 12Gb/s SAS, 6Gb/s SATA technology
  • Mix and match SAS and SATA drives to the same controller
  • Support for SAS tape drives
  • 2 GB Flash Backed Write Cache (FBWC)
  • PCI Express 3.0 x8 link
  • RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)
  • Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
  • Windows Storage Spaces Direct validated
  • VMware Virtual SAN certified
  • Legacy and UEFI boot operation
  • UEFI System Utilities (storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • HPE Smart Array SR SmartCache (optional license)
  • HPE Smart Array SR Secure Encryption (optional license)
  • HPE SSD Smart Path
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive Sanitize
  • Performance Optimization Degraded Reads and Read Coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart Array S-class and E-class controllers
  • FIPS 140 2 Level 1 Implementation Under Test (expected validation complete in 2018)
  • Ports
  • Internal: 8 SAS/SATA lanes across 2 x4 Mini SAS ports
  • Form Factor: Type a Flexible/Modular Controller (does not occupy a PCIe Expansion Slot)
  • Performance
  • 12Gb/s SAS (1200 MB/s theoretical bandwidth per SAS lane)
  • 6Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
  • PCI Express 3.0 x8 link width
  • 2 GB 72 bit wide DDR4-2100 Flash-Backed Write Cache provides up to 16.8 GB/s maximum cache bandwidth
  • Read ahead caching
  • Write back caching
  • Warranty: The warranty for this device is 3 years parts only

HPE Smart Array SR Secure Encryption E LTU
  • Model Number: Q2F26AAE
  • Encryption supported on logical volumes only
  • Automatic key management
  • Broad encryption coverage
  • Encrypts SAS/SATA drive and controller cache memory
  • Compliance with regulations such as HIPAA and Sarbanes-Oxley
  • FIPS 140-2 Level 1validated (see list of validated controllers below)
  • High Availability and Scalability:
  • Local Key Management Mode
  • Remote Key Management Mode
  • Instant volume erase
  • Security reset function
  • Simplified Deployment and Management
  • Warranty: 1 year Warranty
HPE Smart Array SR SmartCache LTU
  • Model Number: D7S26A
  • Standard Features
  • Up to 32 SSD Cache volumes
  • Up to 64 total number of HDD volumes and cache volumes
  • Maximum logical drive size is 281 TB
  • 1 TB maximum SSD SmartCache capacity per controller
  • Supported with all ProLiant Gen8, Gen9, and Gen10 supported SSDs
  • Warranty: 1 year Warranty

HPE Smart Array D7S27A SR SmartCache LTU
  • Model Number: D7S27A
  • Standard Features
  • Up to 32 SSD Cache volumes
  • Up to 64 total number of HDD volumes and cache volumes
  • Maximum logical drive size is 281 TB
  • 1 TB maximum SSD SmartCache capacity per controller
  • Supported with all ProLiant Gen8, Gen9, and Gen10 supported SSDs
  • Warranty: 1 year Warranty
HPE Smart Array SR SmartCache E LTU
  • Model Number: D7S27AAE
  • Standard Features
  • Up to 32 SSD Cache volumes
  • Up to 64 total number of HDD volumes and cache volumes
  • Maximum logical drive size is 281 TB
  • 1 TB maximum SSD SmartCache capacity per controller
  • Supported with all ProLiant Gen8, Gen9, and Gen10 supported SSDs
  • Warranty: 1 year Warranty

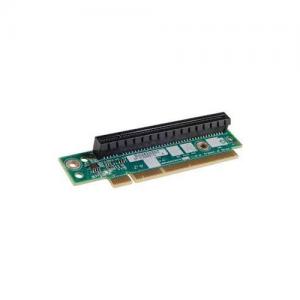

HPE DL38X GEN10 2 X8 Tertiary Riser Kit
  • Product Name: DL38X GEN10 2 X8 Tertiary Riser Kit
  • Manufacturer Part Number: 875780-B21
  • Product Type: Riser Card
  • Expansion Slot Type: PCI Express x8
