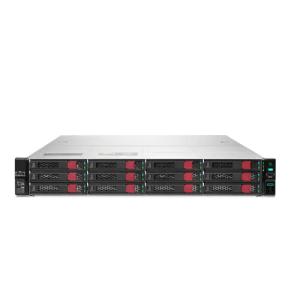

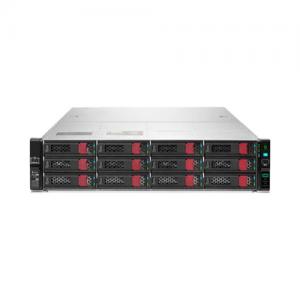

HPE STOREEASY 1650 48TB SAS STORAGE
- SMB/CIFS and Network File System (NFS) over Ethernet
- iSCSI Block over Ethernet; FC for backup
- Network Storage Type: NAS server
- Number of Bays: 12 bays (upto 100 - 7900 users)
- Storage Capacity: 48 TB Raw Internal SATA Included
- Interface: Serial ATA-600 / SAS 2.0
- Network controller: 1GbE 4 port 331i Ethernet Adapter
- Form Factor: Rack-mountable 2U
- Storage Operating System: Microsoft Windows Storage Server 2012 R2 Standard
- Hard Disk: SATA 6Gb/s / SAS 6Gb/s, HDD 6 TB x 8, RAID 1
- SATA 6Gb/s / SAS 6Gb/s, HDD 2 TB x 8, RAID 1
- Features: File Sync and Share, Deduplication, Snapshots, Replication, File Classification, Quotas, File Screening, Storage Reporting
- 3 Years Warranty

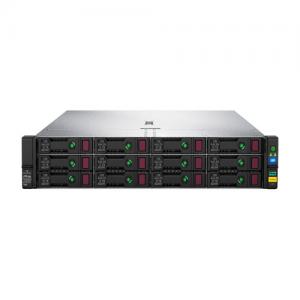

HPE STOREEASY 1650 16TB SAS STORAGE
- iSCSI Block over Ethernet; FC for backup
- Network Storage Type: NAS server
- Number of Bays: 12 bays (upto 100 - 5500 users)
- Storage Capacity: 16 TB Raw Internal SATA Included
- Interface: Serial ATA-600 / SAS 2.0
- Network controller: 1GbE 4 port 331i Ethernet Adapter
- Form Factor: Rack-mountable 2U
- Storage Operating System: Microsoft Windows Storage Server 2012 R2 Standard
- Hard Disk: SATA 6Gb/s / SAS 6Gb/s, HDD 2 TB x 8, RAID 1
- Features: File Sync and Share, Deduplication, Snapshots, Replication, File Classification, Quotas, File Screening, Storage Reporting
- 3 Years Warranty

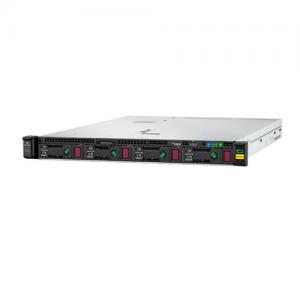

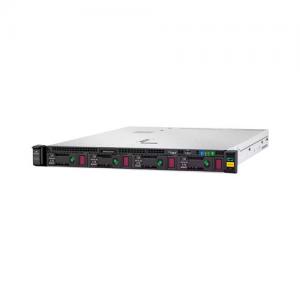

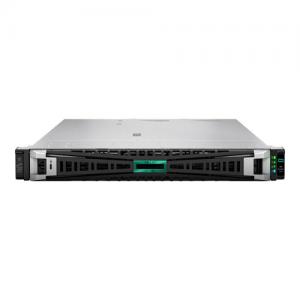

HPE STOREEASY 1450 8TB MDL SATA STORAGE
- SMB/CIFS and Network File System (NFS) over Ethernet
- iSCSI Block over Ethernet; FC for backup
- Network Storage Type: NAS server
- Number of Bays: 4 bays (upto 50 - 2000 users)
- Storage Capacity: 8 TB Raw Internal SATA Included
- Interface: Serial ATA-600 / SAS 2.0
- Network controller: 1Gb 350i Ethernet Adapter
- Form Factor: Rack-mountable 1U
- Hard Disk: SATA 6Gb/s / SAS 6Gb/s, HDD 2 TB x 4, RAID 1
- Features: File Sync and Share, Deduplication, Snapshots, Replication, File Classification, Quotas, File Screening, Storage Reporting
- 3 Years Warranty

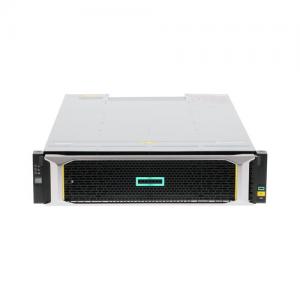

HPE MSA 1040 SAN STORAGE
- Controller Architecture: MSA Gen 4
- Host Port Count: 2 Ports per Controller
- Controller Cache: 4GB
- Controller Design: Factory-configured, SFPs included
- Interfaces Supported: 6Gb/12Gb SAS, 1GbE iSCSI, 10GbE iSCSI, 8Gb FC
- Expansion: 3 additional enclosures max (upto 48 LFF drives)
- HDDs Supported: SAS
- HPE MSA 4TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline *4Numbers
- Snapshots: 64 standard, 512 optional
- Form factor: Rack-mountable 2U
- Replication: Local standard, remote optional
- Performance: 29.4k/19.7k random R/W iOPS; 3.1/1.5 sequential R/W GB/s
- Protocol: iSCSI
- LFF Storage with 16 TB of RAW Capacity using MDL-SAS Disks

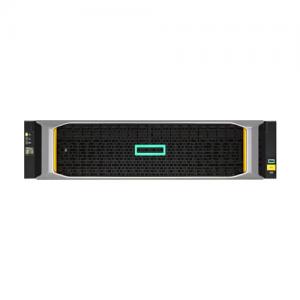

HPE MSA 1040 SAN STORAGE
- HPE MSA 1040 2-port Fibre Channel Dual Controller SFF Storage / 8GB Cache / 4 x 8Gbps FC Ports / Snapshot and Clone included / Support 512 LUN's with maximum LUN Size of 64 TB)
- HPE MSA 900GB 12G SAS 10K 2.5in ENT HDD *4Numbers
- Controller Architecture: MSA Gen 4
- Host Port Count: 2 Ports per Controller
- Controller Cache: 4GB
- Controller Design: Factory-configured, SFPs included
- Interfaces Supported: 6Gb/12Gb SAS, 1GbE iSCSI, 10GbE iSCSI, 8Gb FC
- Expansion: 3 additional enclosures max (upto 99 SFF drives)
- HDDs Supported: SAS
- HPE MSA 900GB 12G SAS 10K 2.5in ENT HDD *4Numbers
- Snapshots: 64 standard, 512 optional
- Replication: Local standard, remote optional
- Form factor: Rack-mountable 2U
- Performance: 29.4k/19.7k random R/W iOPS; 3.1/1.5 sequential R/W GB/s
- Protocols: iSCSI
- SFF Storage with 2.4 TB of RAW Capacity using SAS Drives

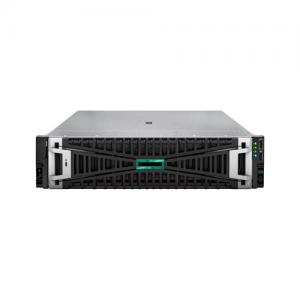

HPE StoreEasy 1860 2u Rack Storage
- Brand: Hp
- Product Model: HPE StoreEasy 1860 Storage 2u Rack Mount With Microsoft
- Shape Factor (fully configured): 2U rack mount Storage
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA or SAS, SFF (2.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Product Weight: 28.77 kg maximum (without rear drives) (63.43 lbs maximum (without rear drives))
- Product Dimensions: 8.75 x 44.54 x 71 cm (without bezel) (3.44 x 17.54 x 28 in (without bezel))
- Warranty: 3 years

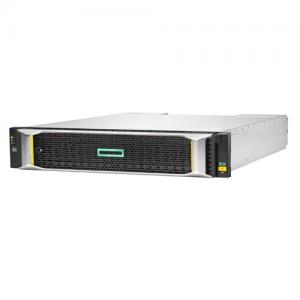

HPE MSA 2060 SAN 2u Storage
- Brand: Hp
- Product Model: HPE MSA 2060 SAN 2u Storage
- Shape Factor: 2U Storage
- Drive description: Up to 12 LFF HDD and/or SSD or up to 24 SFF HDD and/or SSD per array, depending on model
- Capacity: Up to 1,843.2 TB (all SFF) and 2.4 PB (all LFF); depending on model, depending on drive mix
- Storage expansion options: 24 drive bay 2060 SFF drive enclosure or 12 drive bay 2060 LFF drive enclosure (add up to 9)
- Host interface: 16 Gb Fibre Channel, 10/25GbE iSCSI, 10GBase-T iSCSI, or 12 Gb SAS; depending on model
- Storage controller: 2 per array, 4-ports each (8-ports total)
- SAN backup support: Yes
- Storage mirroring support: No
- Systems Insight Manager support: No
- Clustering support: Yes
- Energy efficiency: Energy Star Compliant
- Product weight: 5 kg
- Product Dimensions: 8.9 x 44.5 x 50.8 cm
- Warranty: 3 years
HPE MSA 2060 12Gb SAS 2u Storage
- Brand: Hp
- Product Model: HPE MSA 2060 12Gb SAS 2u Storage
- Shape Factor: 2U Storage
- Drive description: Up to 24 SFF HDD and/or SSD per array model
- Capacity: 1843.2 TB with SFF expansion / 2344.32 TB with LFF expansion (with maximum expansion)
- Storage expansion options: 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9)
- Host interface: 8-ports 12 Gb SAS, 4 ports per controller
- Storage controller: 2 per array, 4-ports each (8-ports total)
- SAN backup support: Yes
- Storage mirroring support: No
- Systems Insight Manager support: No
- Clustering support: Yes
- Energy efficiency: Energy Star Compliant
- Product weight: 5 kg
- Product Dimensions: 8.9 x 44.5 x 50.8 cm
- Warranty: 3 years
HPE MSA 2060 16Gb FC SFF 2u Storage
- Brand: Hp
- Product Model: HPE MSA 2060 16Gb FC SFF 2u Storage
- Shape Factor: 2U Storage
- Drive description: Up to 24 SFF HDD and/or SSD per array model
- Capacity: 1843.2 TB with SFF expansion / 2344.32 TB with LFF expansion (with maximum expansion)
- Storage expansion options: 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9)
- Host interface: 8-ports 16 Gb FC, 4 ports per controller
- Storage controller: 2 per array, 4-ports each (8-ports total)
- SAN backup support: Yes
- Storage mirroring support: No
- Systems Insight Manager support: No
- Clustering support: Yes
- Energy efficiency: Energy Star Compliant
- Product weight: 5 kg
- Product Dimensions: 8.9 x 44.5 x 50.8 cm
- Warranty: 3 years
HPE MSA 2052 SAN Storage
- Brand: Hp
- Form factor: 2U, SFF or LFF
- Number of controllers per array: 2
- Minimum/maximum host ports: 1/8
- SAS host connectivity: 6/12Gb
- Max read cache per array: 8TB
- Data (Read/write) cache + system memory per array: 16GB
- Pool capacity (With large pool support): 562TB (512TiB)
- RAID levels supported: Virtual mode: RAID 1, 5, 6, 10
- Expansion drive enclosures: 0-7 enclosures
- LFF/SFF array/enclosure mixing: Supported
- Maximum number of drives per array enclosure: 24 SFF/12 LFF
- Drive enclosure interface type: 6Gb SAS
- Maximum total HDDs/ SDDs per array: 192 SFF / 96 LFF
- Max raw capacity per array enclosure: 76.8TB SFF / 120TB LFF
- Max raw capacity per array: 614.4TB SFF / 960TB LFF
- Integrated SSDs: 2 x 800GB Mixed Use SSDs
- SFF SSDs (Mixed Use (MU)): 400GB, 800GB, 1.6TB, 3.2TB
- Warranty: 1 year Business Warranty
HPE Storage File Controllers Array
- Brand: Hp
- Capacity: Designed to utilize available HPE MSA, Nimble Storage, or 3PAR StoreServ array/SAN storage capacity
- Storage expansion options: Attach to HPE MSA, Nimble and 3PAR arrays
- Memory : Upto 32GB
- Compatible operating systemsMicrosoft Windows, Linux, UNIX, VMware
- Clustering support: Up to 8-node clusters with transparent failover
- Warranty: 90 days from delivery.
HPE Alletra Storage 5010H Dual Controller Array
- Brand: Hp
- Model: 5010H Dual Controller Array
- HDD Array External Interface Class: iSCSI
- Form Factor: Rack-mountable
- Storage Controller Type: RAID
- Frequency: 50/60 hertz
- Power Supplies Supported: 2
- Storage Controller Interface: Serial Attached SCSI 2
- Max Operating Temperature: 95 degree Fahrenheit
- Min Operating Temperature: 50 degree Fahrenheit
- Operating Humidity: 8 - 90% (non-condensing)
- Required Voltage: AC 100-120/200-240 volt
- Controllers Included: 2
- Dimension (WxDxH): 17.3 x 35 x 6.9 inch
- Weight: 143.3 lbs
- Warranty: 1 year Business Warranty
HPE Alletra 5030 Dual Controller Array
- Brand: Hp
- Model: 5030 Dual Controller Array
- Storage controller: Redundant storage controllers
- Capacity: Up to 504 TB per system
- Drive description: 2 TB, 4 TB, 6 TB, 10 TB, 14 TB
- Cache: 960 GB, 1.92 TB, 3.84 TB, 7.68 TB
- Enclosures: Maximum, Expansion Shelves supported. Powered by redundant Platinum or Titanium efficiency power supplies.
- Maximum drives per enclosure: 21 HDDs and 6 Flash Cache SSDs per base array; plus 21 HDDs and 3 or 6 Flash Cache SSDs per Expansion Shelf.
- Host interface: Fibre Channel and iSCSI network connectivity
- Dimensions: 17.58 x 43.9 x 89 cm (6.92 x 17.3 x 35 in)
- Weight: 65 kg
- Warranty: 1 year Business Warranty
HPE Alletra 5050 Dual Controller Array
- Brand: Hp
- Model: 5050 Dual Controller Array
- Storage controller: Redundant storage controllers
- Capacity: Up to 1260 TB per system
- Drive description: 2 TB, 4 TB, 6 TB, 10 TB, 14 TB
- Cache: 960 GB, 1.92 TB, 3.84 TB, 7.68 TB
- Enclosures: Maximum, Expansion Shelves supported. Powered by redundant Platinum or Titanium efficiency power supplies.
- Maximum drives per enclosure: 21 HDDs and 6 Flash Cache SSDs per base array; plus 21 HDDs and 3 or 6 Flash Cache SSDs per Expansion Shelf.
- Host interface: Fibre Channel and iSCSI network connectivity
- Dimensions: 17.58 x 43.9 x 89 cm (6.92 x 17.3 x 35 in)
- Weight: 65 kg
- Warranty: 1 year Business Warranty
HPE Alletra 5010 Dual Controller Array
- Brand: Hp
- Model: 5010 Dual Controller Array
- Storage controller: Redundant storage controllers
- Capacity: Up to 210 TB per system
- Drive description: 2 TB, 4 TB, 6 TB, 10 TB, 14 TB
- Cache: 960 GB, 1.92 TB, 3.84 TB, 7.68 TB
- Enclosures: Maximum, Expansion Shelves supported.
- Maximum drives per enclosure: 21 HDDs and 6 Flash Cache SSDs per base array; plus 21 HDDs and 3 or 6 Flash Cache SSDs per Expansion Shelf.
- Host interface: Fibre Channel and iSCSI network connectivity
- Dimensions: 17.58 x 43.9 x 89 cm (6.92 x 17.3 x 35 in)
- Weight: 65 kg
- Warranty: 1 year Business Warranty
HPE Alletra 6090 Dual Controller Array
- Brand: Hp
- Model: 6090 Dual Controller Array
- Form Factor: Rack-mountable
- Storage controller: Redundant storage controllers
- Capacity: Up to 368 TB per enclosure
- Drive description: NVME SSDs: 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB
- Maximum drives per enclosure: 24
- Dimensions: 17.6 x 43.9 x 80 cm (6.9 x 17.3 x 31.5 in)
- Weight: 54.5 kg
- Warranty: 1 year Business Warranty
HPE Alletra 6030 Dual Controller Array
- Brand: Hp
- Model: 6030 Dual Controller Array
- Form Factor: Rack-mountable
- Storage controller: Redundant storage controllers
- Capacity: Up to 368 TB per enclosure
- Drive description: NVME SSDs: 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB
- Maximum drives per enclosure: 24
- Dimensions: 17.6 x 43.9 x 80 cm (6.9 x 17.3 x 31.5 in)
- Weight: 54.5 kg (120 lb)
- Warranty: 1 year Business Warranty
HPE Alletra 6070 Dual Controller Array
- Brand: Hp
- Model: 6070 Dual Controller Array
- Form Factor: Rack-mountable
- Storage controller: Redundant storage controllers
- Capacity: Up to 368 TB per enclosure
- Drive description: NVME SSDs: 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB
- Maximum drives per enclosure: 24
- Dimensions: 17.6 x 43.9 x 80 cm (6.9 x 17.3 x 31.5 in)
- Weight: 54.5 kg (120 lb)
- Warranty: 1 year Business Warranty
HPE Alletra 6010 Dual Controller Array
- Brand: Hp
- Model: 6010 Dual Controller Array
- Form Factor: Rack-mountable
- Storage controller: Redundant storage controllers
- Capacity: Up to 368 TB per enclosure
- Drive description: NVME SSDs: 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB
- Maximum drives per enclosure: 24
- Dimensions: 17.6 x 43.9 x 80 cm (6.9 x 17.3 x 31.5 in)
- Weight: 54.5 kg (120 lb)
- Warranty: 1 year Business Warranty
HPE Alletra 6050 Dual Controller Array
- Brand: Hp
- Model: 6010 Dual Controller Array
- Form Factor: Rack-mountable
- Storage controller: Redundant storage controllers
- Capacity: Up to 368 TB per enclosure
- Drive description: NVME SSDs: 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB
- Maximum drives per enclosure: 24
- Dimensions: 17.6 x 43.9 x 80 cm (6.9 x 17.3 x 31.5 in)
- Weight: 54.5 kg (120 lb)
- Warranty: 1 year Business Warranty

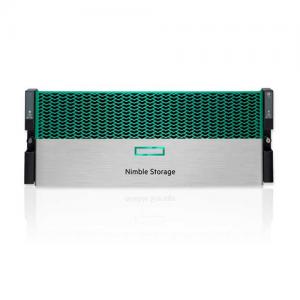

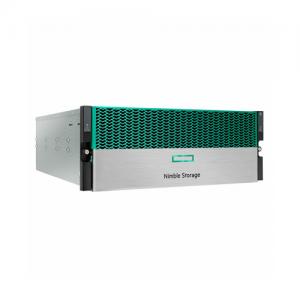

HPE Nimble Storage AF80 Dual Controller Array
- Brand: Hp
- Model: Nimble Storage AF80 Dual Controller Array
- Storage controller: Redundant storage controllers
- Drive description: SATA SSDs: 240 GB, 480 GB, 960 GB, 1.92 TB, 3.84 TB
- Dimensions: 17.58 x 43.9 x 89 cm (6.92 x 17.3 x 35 in)
- Weight: 52 kg
- Warranty: 1 year Business Warranty

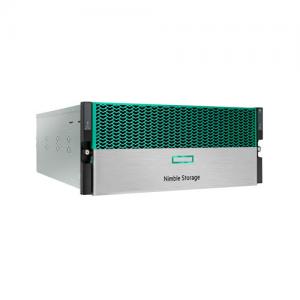

HPE Nimble Storage xF40 Dual Controller Array
- Brand: Hp
- Model: Nimble Storage xF40 Dual Controller Array
- Storage controller: Redundant storage controllers
- Drive description: SATA SSDs: 240 GB, 480 GB, 960 GB, 1.92 TB, 3.84 TB
- Dimensions: 17.58 x 43.9 x 89 cm (6.92 x 17.3 x 35 in)
- Weight: 52 kg
- Warranty: 1 year Business Warranty
HPE Nimble Storage xF60 Dual Controller Array
- Brand: Hp
- Model: Nimble Storage xF60 Dual Controller Array
- Storage controller: Redundant storage controllers
- Drive description: SATA SSDs: 240 GB, 480 GB, 960 GB, 1.92 TB, 3.84 TB
- Dimensions: 17.58 x 43.9 x 89 cm (6.92 x 17.3 x 35 in)
- Weight: 52 kg
- Warranty: 1 year Business Warranty

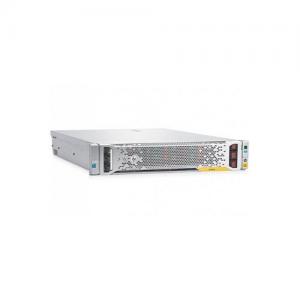

HPE StoreEasy 1870 Storage with Microsoft
- Brand: Hp
- Model: HPE StoreEasy 1870 Storage with Microsoft
- Form factor (fully configured): 2U rack mount
- Capacity: Depends on configuration (67.2 TB raw maximum)
- Host interface: 2 x 10GbE standard
- Drive description: Does not include data drives standard. 24 x SFF (2.5") hot-plug front drive bays standard; 8 x SFF (2.5") hot-plug mid-chassis drive cage is optional
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA or SAS, SFF (2.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1870 Performance Storage with Microsoft
- Brand: Hp
- Model: HPE StoreEasy 1870 Performance Storage with Microsoft
- Form factor (fully configured): 2U rack mount
- Capacity: Depends on configuration (67.2 TB raw maximum)
- Host interface: 2 x 10GbE standard
- Drive description: Does not include data drives standard. 24 x SFF (2.5") hot-plug front drive bays standard; 8 x SFF (2.5") hot-plug mid-chassis drive cage is optional
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA or SAS, SFF (2.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1570 8TB SATA Storage
- Brand: Hp
- Model: HPE StoreEasy 1570 8TB SATA Storage
- Form factor (fully configured): 4.5U tower
- Capacity: 8 TB raw
- Host interface: 2 x 1GbE standard
- Drive description: 4 x 2 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1470 32TB Performance Storage
- Brand: Hp
- Model: HPE StoreEasy 1470 32TB SATA Performance Storage
- Form factor (fully configured): 1U rack mount
- Capacity: 32 TB raw
- Host interface: 2 x 1GbE standard
- Drive description: 4 x 8 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1670 Storage with Microsoft
- Brand: Hp
- Model: HPE StoreEasy 1670 Expanded Storage with Microsoft
- Form factor (fully configured): 2U rack mount
- Capacity: Depends on configuration (320 TB raw maximum)
- Host interface: 4 x 1GbE standard
- Drive description: Does not include data drives standard. 12 x LFF (3.5") hot-plug front drive bays standard; 4 x LFF hot-plug mid-chassis drive cage is optional
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA or SAS, LFF (3.5") low-profile
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1570 8TB Performance Storage
Brand: Hp
Model: HPE StoreEasy 1570 8TB SATA Performance Storage
Form factor (fully configured): 4.5U tower
Capacity: 8 TB raw
Host interface: 2 x 1GbE standard
Drive description: 4 x 2 TB SATA 6G Midline 7.2K LFF HDDs standard
Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
HD type: Hot-plug SATA LFF (3.5")
Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
Weight: Varies by model (Varies by model)
Dimensions: Varies by model (Varies by model)
Warranty: 3 years Business Warranty
HPE StoreEasy 1670 64TB SAS Storage
- Brand: Hp
- Model: HPE StoreEasy 1670 64TB SAS Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 64 TB raw
- Host interface: 4 x 1GbE standard
- Drive description: 8 x 8 TB SAS 12G Midline 7.2K LFF HDDs standard. 4 x LFF (3.5") hot-plug front drive bays open; 4 x LFF hot-plug mid-chassis drive cage is optional.
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA or SAS, LFF (3.5") low-profile
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1570 16TB Performance Storage
- Brand: Hp
- Model: HPE StoreEasy 1570 16TB SATA Performance Storage
- Form factor (fully configured): 4.5U tower
- Capacity: 16 TB raw
- Host interface: 2 x 1GbE standard
- Drive description: 4 x 4 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1470 8TB SATA Storage
- Brand: Hp
- Model: HPE StoreEasy 1470 8TB SATA Performance Storage
- Form factor (fully configured): 1U rack mount
- Capacity: 8 TB raw
- Host interface: 2 x 1GbE standard
- Drive description: 4 x 2 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1570 16TB SATA Storage
- Brand: Hp
- Model: HPE StoreEasy 1570 16TB SATA Storage
- Form factor (fully configured): 4.5U tower
- Capacity: 16 TB raw
- Host interface: 2 x 1GbE standard
- Drive description: 4 x 4 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1470 16TB SATA Storage
- Brand: Hp
- Model: HPE StoreEasy 1470 16TB SATA Storage
- Form factor (fully configured): 1U rack mount
- Capacity: 16 TB raw
- Host interface: 2 x 1GbE standard
- Drive description: 4 x 4 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5)
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1670 Performance Storage with Microsoft
- Brand: Hp
- Model: HPE StoreEasy 1670 Performance Storage with Microsoft
- Form factor (fully configured): 2U rack mount
- Capacity: Depends on configuration (320 TB raw maximum)
- Host interface: 4 x 1GbE standard
- Drive description: Does not include data drives standard. 12 x LFF (3.5") hot-plug front drive bays standard; 4 x LFF hot-plug mid-chassis drive cage is optional
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA or SAS, LFF (3.5") low-profile
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1470 48TB Performance Storage
- Brand: Hp
- Model: HPE StoreEasy 1470 48TB Performance Storage
- Form factor (fully configured): 1U rack mount
- Capacity: 48 TB raw
- Host interface: 2 x 1GbE standard
- Drive description: 4 x 12 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1570 32TB SATA Performance Storage
- Brand: Hp
- Model: HPE StoreEasy 1570 32TB SATA Performance Storage
- Form factor (fully configured): 4.5U tower
- Capacity: 32 TB raw
- Host interface: 2 x 1GbE standard
- Drive description: 4 x 8 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1670 Expanded Storage
- Brand: Hp
- Model: HPE StoreEasy 1670 Expanded Storage
- Form factor (fully configured): 2U rack mount
- Capacity: Depends on configuration (560 TB raw maximum)
- Host interface: 2 x 10GbE standard
- Drive description: Does not include data drives standard. 24 x LFF (3.5") hot-plug front drive bays standard; 4 x LFF hot-plug rear drive cage standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA or SAS, LFF (3.5") low-profile
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty

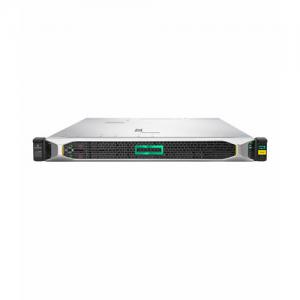

HPE StoreEasy 1460 16TB SATA Storage
- Brand: Hp
- Model: HPE StoreEasy 1460 16TB SATA Storage
- Form factor (fully configured): 1U rack mount
- Capacity: 16 TB raw
- Host interface: 4 x 1GbE standard
- Protocol supported: SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
- Drive description: 4 x 4 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: 16.78 kg maximum (37 lb maximum)
- Dimensions: 8.73 x 44.54 x 73.02 cm (without bezel) (1.69 x 17.11 x 29.5 in)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1660 Storage with Microsoft
- Brand: Hp
- Model: HPE StoreEasy 1660 Storage with Microsoft
- Form factor (fully configured): 2U rack mount
- Capacity: Option to choose
- Host interface: 4 x 1GbE standard
- Protocol supported: SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
- Drive description: Does not include data drives standard. 12 x LFF (3.5") hot-plug front drive bays standard, 4 x LFF hot-plug mid-chassis drive cage is optional
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1460 32TB SATA Storage
- Brand: Hp
- Model: HPE StoreEasy 1460 32TB SATA Storage
- Form factor (fully configured): 1U rack mount
- Capacity: 32 TB raw
- Host interface: 4 x 1GbE standard
- Protocol supported: SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
- Drive description: 4 x 8 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: 16.78 kg maximum (37 lb maximum)
- Dimensions: 8.73 x 44.54 x 73.02 cm (without bezel) (1.69 x 17.11 x 29.5 in)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1460 8TB SATA Storage
- Brand: Hp
- Model: HPE StoreEasy 1460 8TB SATA Storage
- Form factor (fully configured): 1U rack mount
- Capacity: 8 TB raw
- Host interface: 4 x 1GbE standard
- Protocol supported: SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
- Drive description: 4 x 2 TB SATA 6G Midline 7.2K LFF HDDs standard
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: 16.78 kg maximum (37 lb maximum)
- Dimensions: 8.73 x 44.54 x 73.02 cm (without bezel) (1.69 x 17.11 x 29.5 in)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1660 64TB SAS Storage
- Brand: Hp
- Model: HPE StoreEasy 1660 64TB SAS Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 64 TB raw
- Host interface: 4 x 1GbE standard
- Protocol supported: SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
- Drive description: 8 x 8 TB SAS 12G Midline 7.2K LFF HDDs standard. 4 x LFF (3.5") hot-plug front drive bays open; 4 x LFF hot-plug mid-chassis drive cage is optional.
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: 33.9 kg maximum (without rear drives) (74.9 lb maximum (without rear drives))
- Dimensions: 8.73 x 44.54 x 74.9 cm (without bezel) (3.44 x 17.54 x 29.5 in (without bezel)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1660 32TB SAS Storage
- Brand: Hp
- Model: HPE StoreEasy 1660 32TB SAS Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 32 TB raw
- Host interface: 4 x 1GbE standard
- Protocol supported: SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
- Drive description: 8 x 4 TB SAS 12G Midline 7.2K LFF HDDs standard. 4 x LFF (3.5") hot-plug front drive bays open; 4 x LFF hot-plug mid-chassis drive cage is optional.
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA LFF (3.5")
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: 33.9 kg maximum (without rear drives) (74.9 lb maximum (without rear drives))
- Dimensions: 8.73 x 44.54 x 74.9 cm (without bezel) (3.44 x 17.54 x 29.5 in (without bezel)
- Warranty: 3 years Business Warranty
HPE StoreEasy 1670 32TB SAS Storage
- Brand: Hp
- Model: HPE StoreEasy 1670 32TB SAS Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 32 TB raw
- Host interface: 4 x 1GbE standard
- Protocol supported: SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
- Drive description: 8 x 4 TB SAS 12G Midline 7.2K LFF HDDs standard. 4 x LFF (3.5") hot-plug front drive bays open; 4 x LFF hot-plug mid-chassis drive cage is optional.
- Replication support: Microsoft Distributed File System Replication (DFS-R) for data sets up to 100 TB
- Clustering support: Not supported on HPE StoreEasy 1000 Storage appliances
- HD type: Hot-plug SATA or SAS, LFF (3.5") low-profile
- Snapshot support: Microsoft Volume Shadow Copy Service (VSS)
- Weight: Varies by model (Varies by model)
- Dimensions: Varies by model (Varies by model)
- Warranty: 3 years Business Warranty
HPE MSA 1050 SAN Storage
- Brand: Hp
- Model: HPE MSA 1050 SAN Storage
- Form factor: 2U rack height
- Capacity: 672 TB maximum including expansion, depending on model
- Drive description: 96 SFF or 48 LFF Maximum including expansion, depending on model
- Host interface: 8 Gb Fibre Channel, 4-ports per system or 1 Gb iSCSI, 4-ports per system or 10 Gb iSCSI, 4-ports per system or 12 Gb SAS, 4-ports per system, depending on model
- Storage controller: (2) HPE MSA 1050 2-port 8 Gb FC Controllers or (2) HPE MSA 1050 2-port 1 Gb iSCSI Controllers or (2) HPE MSA 1050 2-port 10 Gb iSCSI Controllers or (2) HPE MSA 1050 2-port 12 Gb SAS Controllers, depending on model
- Storage expansion options: HPE MSA 2050 SFF Disk Enclosure or HPE MSA 2050 LFF Disk Enclosure
- Clustering support: Windows, Linux, HP-UX
- Minimum dimensions ( H x W x D): 8.9 x 49.5 x 44.7 cm
- Weight: 17.55 kg
- Warranty: 3 years Business Warranty
HPE MSA 2050 SAN Dual Controller Storage
- Brand: Hp
- Model: HPE MSA 2050 SAN Dual Controller Storage
- Form factor: 2U rack height
- Capacity: 614 TB SFF maximum raw capacity
- Drive description: 24 SFF SAS/MDL SAS/SSD
- Host interface: One 16 Gb/8 Gb Fibre Channel 4-ports per controller or one 1GbE/10GbE iSCSI 4-ports per controller is included
- Storage controller: Two HPE MSA 2050 SAN controllers included
- Storage expansion options: HPE MSA 2050 LFF Disk Enclosure or HPE MSA 2050 SFF Disk Enclosure
- Clustering support: Windows, Linux, HP-UX
- SAN backup support: Yes
- Minimum dimensions ( H x W x D): 8.9 x 49.5 x 44.7 cm
- Weight: 18.4 kg
- Warranty: 3 years Business Warranty
HPE MSA 1060 12Gb SAS Storage
- Brand: Hp
- Model: HPE MSA 1060 12Gb SAS SFF Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 737.28 TB with SFF expansion, 904.32 TB with LFF expansion
- Drive description: Up to 24 SFF HDD and/or SSD on all 1060 array models
- Storage expansion options: 24 drive bay 2060 SFF disk enclosure or 12 drive bay 2060 LFF disk enclosure (add up to 3)
- Host interface: 4-ports 12Gb SAS
- Storage controller: (2) HPE MSA 1060 12Gb SAS Storage controllers, 2-ports each
- SAN backup support: Yes
- Clustering support: Yes
- Weight: 5 kg (11 lb)
- Dimensions: 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)
- Warranty: 3 years Business Warranty
HPE MSA 1060 10GBASE T iSCSI Storage
- Brand: Hp
- Model: HPE MSA 1060 10GBASE?T iSCSI Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 737.28 TB with SFF expansion, 904.32 TB with LFF expansion
- Drive description: Up to 24 SFF HDD and/or SSD on all 1060 array models
- Storage expansion options: 24 drive bay 2060 SFF disk enclosure or 12 drive bay 2060 LFF disk enclosure (add up to 3)
- Host interface: 4-ports 10GBaseT iSCSI
- Storage controller: (2) HPE MSA 1060 12Gb SAS Storage controllers, 2-ports each
- SAN backup support: Yes
- Clustering support: Yes
- Weight: 5 kg (11 lb)
- Dimensions: 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)
- Warranty: 3 years Business Warranty
HPE MSA 1060 16Gb Fibre Channel Storage
- Brand: Hp
- Model: HPE MSA 1060 16Gb Fibre Channel Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 737.28 TB with SFF expansion, 904.32 TB with LFF expansion
- Drive description: Up to 24 SFF HDD and/or SSD on all 1060 array models
- Storage expansion options: 24 drive bay 2060 SFF disk enclosure or 12 drive bay 2060 LFF disk enclosure (add up to 3)
- Host interface: 4-ports 16Gb FC
- Storage controller: (2) HPE MSA 1060 12Gb SAS Storage controllers, 2-ports each
- SAN backup support: Yes
- Clustering support: Yes
- Weight: 5 kg (11 lb)
- Dimensions: 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)
- Warranty: 3 years Business Warranty
HPE MSA 2062 10GBASE T iSCSI Storage
- Brand: Hp
- Model: HPE MSA 2062 10GBASE?T iSCSI Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 1,831.68TB with SFF expansion / 2,332.80TB with LFF expansion (with maximum expansion)
- Drive description: (2) HPE 1.92 TB Read Intensive SFF SSDs included (maximum 24 SFF drives per array model)
- Storage expansion options: 24 drive bay 2060 SFF drive enclosures and/or 12 drive bay 2060 LFF drive enclosures (add up to 9)
- Host interface: 8-ports 10GBase-T iSCSI, 4-ports per controller
- Storage controller: (2) HPE MSA 2060 10GBase-T iSCSI storage controllers, 4-ports per controller
- SAN backup support: Yes
- Clustering support: Yes
- Weight: 5.0 kg (11.0 lb)
- Dimensions: 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)
- Warranty: 3 years Business Warranty
HPE MSA 2062 10GbE iSCSI Storage
- Brand: Hp
- Model: HPE MSA 2062 10GbE iSCSI Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 1,831.68TB with SFF expansion / 2,332.80TB with LFF expansion (with maximum expansion)
- Drive description: (2) HPE 1.92 TB Read Intensive SFF SSDs included (maximum 24 SFF drives per array model)
- Storage expansion options: 24 drive bay 2060 SFF drive enclosures and/or 12 drive bay 2060 LFF drive enclosures (add up to 9)
- Host interface: 8-ports 10/25GbE iSCSI, 4-ports per controller
- Storage controller: (2) HPE MSA 2060 10GBase-T iSCSI storage controllers, 4-ports per controller
- SAN backup support: Yes
- Clustering support: Yes
- Weight: 5.0 kg (11.0 lb)
- Dimensions: 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)
- Warranty: 3 years Business Warranty
HPE MSA 2062 16Gb Fibre Channel Storage
- Brand: Hp
- Model: HPE MSA 2062 16Gb Fibre Channel Storage
- Form factor (fully configured): 2U rack mount
- Capacity: 1,831.68TB with SFF expansion / 2,332.80TB with LFF expansion (with maximum expansion)
- Drive description: (2) HPE 1.92 TB Read Intensive SFF SSDs included (maximum 24 SFF drives per array model)
- Storage expansion options: 24 drive bay 2060 SFF drive enclosures and/or 12 drive bay 2060 LFF drive enclosures (add up to 9)
- Host interface: 8-ports 16Gb FC, 4-ports per controller
- Storage controller: (2) HPE MSA 2060 10GBase-T iSCSI storage controllers, 4-ports per controller
- SAN backup support: Yes
- Clustering support: Yes
- Weight: 5.0 kg (11.0 lb)
- Dimensions: 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)
- Warranty: 3 years Business Warranty
