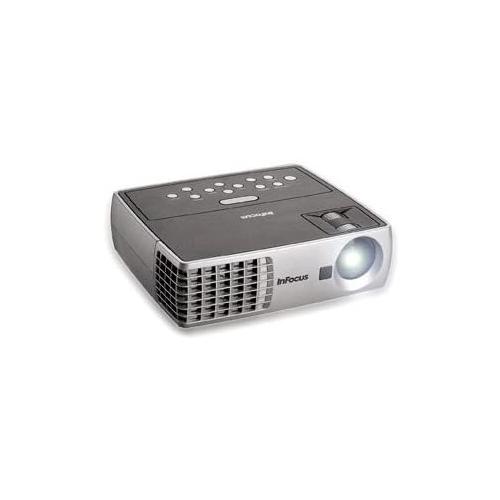

InFocus IN1100 Ultra Mobile DLP Projector
InFocus IN1100 Ultra Mobile DLP Projector in Hyderabad
POWER DEVICE
Typepower supply
Nominal VoltageAC 120/230 V
Frequency Required50/60 Hz
Power Consumption Operational185 Watt
INTERFACE PROVIDED
Qty1
Connector Type15 pin HD D-Sub (HD-15), 4 pin mini-DIN, RCA, mini-USB Type B, mini-phone 3.5 mm
Purpose / Locationmanagement
CHASSIS
Built-in Devicesspeaker
MISCELLANEOUS
Colorblack, silver
Security Featurespin code, security lock slot (cable lock sold separately)
DISPLAY
Image Brightness2100 ANSI lumens
Image Contrast Ratio1800:1
Image Size21.7 in - 241 in
Projection Distance4 ft - 39 ft
Max Sync Rate (V x H)85 Hz x 92 kHz
VIDEO OUTPUT
Analog Video SignalRGB
VIDEO INPUT
Video Modes1080/60p, 1080i, 480i, 480p, 576i, 576p, 720p
Analog Video FormatNTSC, PAL, SECAM
Analog Video SignalRGB, S-Video, composite video
Video InterfacesS-Video, VGA, composite video
TV SystemNTSC, SECAM, PAL
ENVIRONMENTAL PARAMETERS
Sound Emission35 dB
Min Operating Temperature41 °F
Max Operating Temperature95 °F
HEADER
BrandInFocus
Product LineInFocus
ModelIN1100
Packaged Quantity1
CompatibilityMac, PC
OPERATION
Lamp Type165 Watt
Lamp Life CycleUp to 3000 hour(s) - normal mode
Up to 4000 hour(s) - economic mode
PROJECTOR
Classdigital projector
Recommended Usepresentation and multimedia
TypeDLP projector
Portabilityportable
Min Image Size21.7 in
Max Image Size241 in
Color Support16.7 million colors
Native Resolution1024 x 768
Max Resolution (Resized)1600 x 1200
Display Resolution AbbreviationXGA
Max V-Sync Rate85 Hz
Max H-Sync Rate92 KHz
Native Aspect Ratio4:3
Brightness2100 ANSI lumens
Brightness (Reduced)1550 ANSI lumens
Contrast Ratio1800:1
Min Screen Distance4 ft
Max Screen Distance39 ft
Throw Ratio1.95 - 2.15:1
Controls & Adjustmentskeystone correction
OSD LanguagesChinese (simplified), Chinese (traditional), Danish, Dutch, English, Finnish, French, German, Italian, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish
Projector Features5-segment color wheel, BrilliantColor, DisplayLink, whisper-mode
DLP
DLP/LCD technology statementInstead of having glass panels (LCD) through which light is passed, the DLP chip's surface is made up of thousands of tiny mirrors each representing a single pixel.
AUDIO OUTPUT
Typespeaker(s)
Sound Output Modemono
Form Factorintegrated
Output Power / Channel1 Watt
PROJECTOR LENS SYSTEM
Zoom Typemanual
Zoom Factor1.1x
Keystone Correction Typedigital
Keystone Correction Directionvertical
Vertical Keystone Correction-30 / +30
DIMENSIONS & WEIGHT
Width8.3 in
Depth7.2 in
Height2.5 in
Weight2.76 lbs
EXPANSION SLOTS
Typenone
AUDIO OUTPUT DETAILS
Speaker Typemixed channel
Speakers Qty1
CABLE DETAILS
TypeUSB adapter, VGA cable
Form Factorexternal
Included Qty1
Cable DetailsUSB Type A to B
SERVICE & SUPPORT
Type2 years warranty
SERVICE & SUPPORT DETAILS
Typelimited warranty
Full Contract Period2 years, 6 months, 90 daysGENERAL
ManufacturerIn Focus Systems, Inc.
