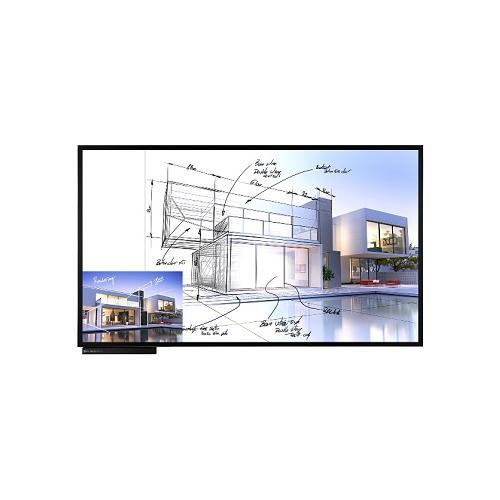

LG TN3F B 86 inch UHD IPS Multi Touch Screen Display

Brightness(Typ.) : 350 cd/m²

Touch Type : In-Cell

Multi Touch Point : Active Pen : Max 2 Point

Depth : 86.5 mm

Interface : HDMI (2), DP, DVI-D, USB Type C / Audio-in,RS232C In/Out,USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)

PANEL

Screen Size 218.44cm (86) Panel Technology IPS

Back Light Type Edge Aspect Ratio 16 : 9

Native Resolution 3,840 x 2,160 (UHD) Brightness(Typ., cd/m², w/ Protection Glass) 350

Contrast Ratio 1,000:1(TBD) Viewing Angle (H x V) 178 x 178

Response Time 8 ms(G to G) Life Time (Typ.) 30,000 Hrs (Min.)

Operation Hours 16Hr Orientation Landscape

CONNECTIVITY

Video / Audio HDMI (2), DP, DVI-D, USB External Control RS232C In/Out

USB USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)

MECHANICAL SPECIFICATION

Bezel Color Black Bezel Width (T/L/R/B) set: 28.8mm

Monitor Dimension (W × H × D) 1952.6 x 1164.1 x 86.4 mm Weight (Head) 66.7 kg

Carton Dimensions (W × H × D) 2190 x 1470 x 371 mm Packed Weight 95kg

Handle Yes VESA™ Standard Mount Interface 600 x 400

ENVIRONMENT CONDITIONS

Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %

POWER

Power Supply 100-240V~, 50/60Hz Power Type Built-In Power

Power Consumption (Typ. / Max.) 360W / 420W

SOUND

Speaker Built in(10W/Ch)

STANDARD(CERTIFICATION)

Safety CB / NRTL EMC FCC Class "A" / CE / KC

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible Yes Optional (OPS Kit (KT-OPSF))

ACCESSORY

Basic Remote Controller(include battery 2ea), Power Cord, QSG, HDMI(3M), Regulation Book, Phone to RS232C Gender, Touch Pen(2ea, include battery 2ea), Pen Tip(10ea), Tip Remover(2ea), USB Type-C Cable, Ferrite Core Filter

SPECIAL FEATURE

IDB App Yes

TOUCH SPECIFICATIONS

Touch Type In-cell Available Object Size for Touch Ø5 mm ?

Response Time (PC Windows 10) 70ms? Accuracy 1.5mm

Interface USB 2.0 Protection Glass Thickness 1.85T (Anti-Glare)

Protection Glass Transmission 88% Operating Systme Support Win7 professional, Win8.1, Win10

Multi touch point Finger : Max 20 Point (Windows), Finger: Max 10Point (webOS), Active Pen : Max 2 Point
